- Rated Amperage: 4 x 70A
- Typical Power: 13.4kW
- Outputs: High Current: (4) 70A
- Circuit Protection: TPC Fuses
- Inputs: (4) -48VDC Terminal Blocks (+/- & G)
- Form Factor: 2.5U x 16"D x 17"W

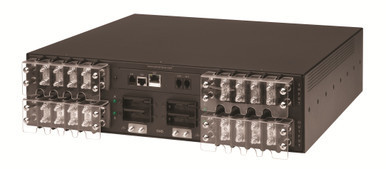

The PRO1 Switched 48DCWC-04-4X070-D0NB Intelligent PDU and Remote Power Manager minimizes the impact of locked-up routers, servers and other network devices on business-critical networks. CLECs, ILECs, ISPs and enterprises use the 48DCWC-04-4X070-D0NB to manage equipment in remote sites, co-location facilities and network operation centers. The 48DCWC-04-4X070-D0NB eliminates the need to dispatch a field service technician for manual intervention when devices lock-up. Using a 48DCWC-04-4X070-D0NB, the network operations center can quickly restart locked-up remote network servers to ensure that the network is fully operational around the clock.
- Disconnect Rated Circuit Protection: Each output is protected by a fuse or circuit breaker and is rated for hot disconnect.
-
Output Current Monitoring: Network monitoring provides access to current draw at each output and alerts when high usage risks a tripped circuit.
-
Output Control: Cycle power to individual outputs or groups of outputs to reboot devices or to power off unused terminals.
-
Network Monitoring: The PRO1 hot-swappable network card provides for HTTP(S), SSH, Telnet,SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
-
Temperature/ Humidity Monitoring: PRO1 Primary and Expansion units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications. (Sold Separately)
-
Star Multi-Linking: PRO1 provides the ability to link up to four power circuits using one IP address. First link provides backup power to network card.
ServerTech -48VDC Family Brochure (PDF)
- Rated Amperage: 4 x 70A
- Typical Power: 13.4kW
- Outputs: High Current: (4) 70A
- Circuit Protection: TPC Fuses
- Inputs: (4) -48VDC Terminal Blocks (+/- & G)
- Form Factor: 2.5U x 16"D x 17"W
The PRO1 Switched 48DCWC-04-4X070-D0NB Intelligent PDU and Remote Power Manager minimizes the impact of locked-up routers, servers and other network devices on business-critical networks. CLECs, ILECs, ISPs and enterprises use the 48DCWC-04-4X070-D0NB to manage equipment in remote sites, co-location facilities and network operation centers. The 48DCWC-04-4X070-D0NB eliminates the need to dispatch a field service technician for manual intervention when devices lock-up. Using a 48DCWC-04-4X070-D0NB, the network operations center can quickly restart locked-up remote network servers to ensure that the network is fully operational around the clock.
- Disconnect Rated Circuit Protection: Each output is protected by a fuse or circuit breaker and is rated for hot disconnect.
-
Output Current Monitoring: Network monitoring provides access to current draw at each output and alerts when high usage risks a tripped circuit.
-
Output Control: Cycle power to individual outputs or groups of outputs to reboot devices or to power off unused terminals.
-
Network Monitoring: The PRO1 hot-swappable network card provides for HTTP(S), SSH, Telnet,SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
-
Temperature/ Humidity Monitoring: PRO1 Primary and Expansion units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications. (Sold Separately)
-
Star Multi-Linking: PRO1 provides the ability to link up to four power circuits using one IP address. First link provides backup power to network card.
ServerTech -48VDC Family Brochure (PDF)
