AisleLok Magnetic Under Rack Panels - 10 ea

The AisleLok® Magnetic Under Rack Panel is a quick and easy way to improve airflow management and may immediately improve IT equipment intake air temperature. Its revolutionary sealing technology was re-designed to allow easy modifications for an improved seal on even large and unique openings found under many of today’s racks. It complements and enhances the performance of existing blanking panels by either blocking bypass airflow or exhaust air re-circulation to support cooling system efficiencies of the data center.

• Easily install, remove, and relocate with magnetic application
• Toolless installation and height adjustment reduces overall install time
• Effective seal blocks bypass airflow and or exhaust recirculation and resulting hot spots
• Improves IT equipment reliability and extends equipment life
• Supports cooling unit fan speed reduction
• Supports higher supply air temperatures and free cooling utilization

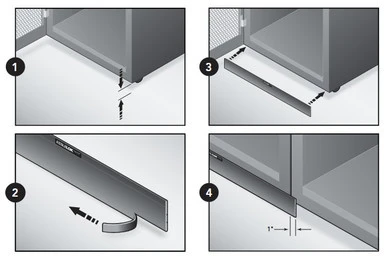

Easily and quickly remove excess material for a custom height using the pre-scored lines on the back of the Under Rack
Panel — without tools. The panel attaches magnetically for easy application and relocation. The AisleLok Magnetic Under Rack Panel comes in three sizes: 10226: 26" (660 mm) for rack width surfaces up to 24"W (610 mm), 10227: 33.5" (851 mm) for rack width surfaces up to 31.5"W (800 mm), and 10228: 96" (2438 mm) for rack width surfaces up to 94" (2388 mm)

The new AisleLok Magnetic Under Rack Panel will improve airflow management and help you recover stranded capacity. These panels are a cost effective way of reducing IT equipment hot spots, cooling unit inefficiencies, and infrastructure costs. Sealing the space under racks with the Magnetic Under Rack Panel is an essential aspect of airflow management best practices.

AisleLok Magnetic Under Rack Panel Features:

• Available in three widths; 26" (660 mm), 33.5" (851 mm), or 96" (2438 mm)
• Maximum Under Rack Sealing Length: 24" (610 mm), 31.5" (800 mm), or 94"(2387 mm)
• Pre-scored at 1-inch increments
• Magnetic application
• Rigid PVC material with UL94 V0
• Economical solution
• No logo/branding on the 96" (2438mm) width

AisleLok Magnetic Under Rack Panel Specifications:

• The Magnetic Under Rack Panel is made from .06" (1.5 mm) Durable PVC
• Finish: Black
• Flammability Rating: UL94 V0
• RoHS Compliant
