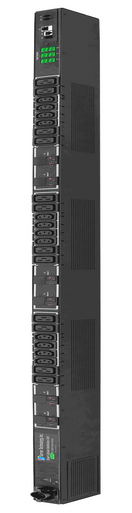

Smart PDU 208 3-Ph Delta, 60A, IEC 60309 3P+G 9Hr, (12) C13 + (12) C19, 0U

No reviews yet
Product Code: CSG-24VDX417A9
Weight: 35.00 LBS
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
  • Voltage: 208 3-Ph Delta
  • Amperage: 60A
  • Input IEC 60309 3P+G 9Hr
  • Output: (12) C13 + (12) C19
  • Form Factor: 0U Vertical

The Server Technology Smart POPS PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS and POPS technology provides accurate measurement of current (billing-grade), voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input and at each output. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The Smart POPS "Master" PDU can be connected to a Smart POPS "Link" PDUs to extend the network access to the redundant or secondary power feed.

Features & Benefits

  • (12) C13 & (12) C19 outlets
  • Network Monitoring
  • Linkable Expansion
  • Temperature/Humidity Monitoring
  • Auto-Flip Current Display
  • Per-Inlet Power Sensing
  • Per-Outlet Power Sensing
  • Branch Circut Protection
  • High Retension Locking Outlets
  • Flexible Mounting
  • Color Identification
  • Cisco Energywise Compliant
  • Norton Secured
  • TRUSTe Verified
  • Accredited Business

  • Voltage: 208 3-Ph Delta
  • Amperage: 60A
  • Input IEC 60309 3P+G 9Hr
  • Output: (12) C13 + (12) C19
  • Form Factor: 0U Vertical

The Server Technology Smart POPS PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS and POPS technology provides accurate measurement of current (billing-grade), voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input and at each output. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The Smart POPS "Master" PDU can be connected to a Smart POPS "Link" PDUs to extend the network access to the redundant or secondary power feed.

Features & Benefits

  • (12) C13 & (12) C19 outlets
  • Network Monitoring
  • Linkable Expansion
  • Temperature/Humidity Monitoring
  • Auto-Flip Current Display
  • Per-Inlet Power Sensing
  • Per-Outlet Power Sensing
  • Branch Circut Protection
  • High Retension Locking Outlets
  • Flexible Mounting
  • Color Identification
  • Cisco Energywise Compliant
