APC NetBotz Rack Monitor 455 (NBWL0456A)

Please note, the APC NBWL0456A has been discontinued. For replacement options, please contact your Server Racks Online sales representative.

The APC NetBotz Room Monitor 455 (with PoE Injector) functions as the central hardware appliance for high performance security and environmental monitoring. The NetBotz 455 can be installed anywhere in a room and includes an integrated camera and internal sensors that monitor temperature, humidity, air flow, dew point, and camera motion. It also includes four sensor ports for connecting temperature, humidity, smoke, door, vibration, spot fluid, and third-party dry contact and 0–5 V sensors. Plus, it supports two-way audio, audio sensing, and audio recording. You can increase the space monitored by adding up to two NetBotz sensor pods - supports 3 additional external cameras pods, 2 sensor pods / up to 16 Universal Sensors.

  • Camera Support: 1 (Integrated) + 3 Camera Pods
  • Internal Sensors: Temperature, Humidity, Air Flow, Dew Point, and Camera Motion
  • Universal Sensor Ports: 4
  • Optional Sensors: Temperature, Humidity, Smoke, Door, Vibration, Spot Fluid, and 3rd-party Dry Contact and 0–5 V Sensors
  • Sensor Pods Supported (A-Link): 2, cascaded
  • Universal Sensors Supported: 16 via Pods
  • Power: Power-Over-Ethernet (PoE) Injector
  • Warranty: 2 years repair or replace

Standard Lead Time: Usually Ships within 2 Weeks

APC NBWL0456 - Click to enlarge

APC

Price
$2,375.00
Dimensions8.27"H x 6.69"W x 3.74"D

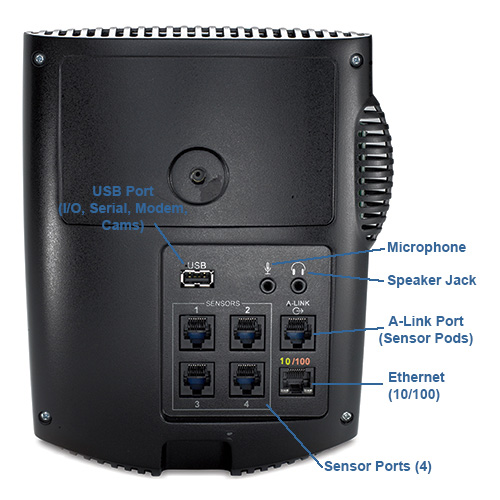

NBWL0456 Rear

Features

  • Environmental monitoring: Prevent equipment failure from a full range of threatening environmental conditions.
  • Surveillance: Detect and record motion, allowing a visual record to be paired with an access or environmental alert, which speeds root cause analysis.
  • Fault notification: Real-time event notification minimizes response times to critical physical infrastructure situations. Enables IT Administrators to reduce mean time to repair, improve efficiency, and maximize uptime.
  • Door Access monitoring: Detect access by unauthorized personnel via door switch.
  • 2-Way audio: Supports remote service capability through speaker and microphone inputs. Advanced Software Pack #1 required to enable functionality.
  • Adjustable threshold: Customize threshold definitions (multiple thresholds per sensor, scheduling, severity levels) to your requirements.
  • Customized escalation policies: Alerts are managed according to your escalation policies and received in multiple formats.
  • Event-driven video storage: Video storage prompted by motion or alert.
  • Password Security: User-selectable password protection prevents unauthorized access, authorized against LDAP and Active Directory servers

Manageability

  • Browser Accessible: View the user interface with a browser. Provides quick access from anywhere on a secure network.
  • Enterprise management system compatible: Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1, SNMPv2 and SNMPv3 using the PowerNet MIB
  • Integrates with StruxureWare Data Center Expert: For management of multiple NetBotz appliances, use StruxureWare Data Center Expert. StruxureWare Data Center Expert surveillance licenses enable a single view of multiple cameras, rapid search and retrieval of video, plus 'tagging' of important video clips.
  • Advanced View client application: Robust appliance interface provides historic alerts, graphs, and configuration.
  • Alerts View: Easily review and correlate alerts. Provide context to alerts by attaching video clips, graphs, and maps.

Sensors

  • 4 Sensor Ports for connecting temperature, humidity, smoke, door, vibration, spot fluid, and third-party dry contact and 0–5 V sensors.
  • Sensor Pods (A-Link): You can cascade up to a combined total of two NetBotz Rack Sensor Pod 150s (NBPD0150), NetBotz Room Sensor Pod 155s (NBPD0155), and NetBotz Rack Access Pod 170s (NBPD0171, NBPD0172) and up to a combined total of eight Temperature Sensors with Digital Display (AP9520T) and Temperature/ Humidity Sensors with Digital Display (AP9520TH).
  • Third-party dry contact sensors require the NetBotz Dry Contact Cable (NBES0304). To connect a sensor to the cable, follow the instructions provided with the sensor and the instructions provided with the cable.
  • Standard third-party 0-5 V sensors require the NetBotz 0-5 V Sensor Cable (NBES0305). To connect a sensor to the cable, follow the instructions provided with the sensor and the instructions provided with the cable.

Integrated Camera

  • Image processor that generates images up to 1280 x 1024 resolution, 24-bit color, and up to 30 frames per second.
  • Image Size: 7.7 mm x 6.1 mm (9.82 mm diagonal = 0.387 in).
  • Field of View: 64° (H) x 53° (V) for all resolutions.
  • User adjustable and switchable industry-standard CS-mount lens.
    CS-mount permits access to hundreds of different general purpose and special purpose lenses.

NBWL0456A Package Contents

  • NetBotz Room Monitor 455
  • Bracket mounting plate for electrical boxes
  • Extender arms
  • Ball-joint adjuster arms
  • T-bar mounting plate
  • Rubber bracket cover
  • Mounting plate
  • Cable retainer
  • Mounting screw wall anchors
  • Extender arm set screw
  • 203-mm (8-in) tie wraps
  • Adhesive cable tie holders
  • 13-mm (0.5-in) machine screws (for electrical box)
  • 19-mm (0.75-in) sheet metal screws (for wall or enclosure)
  • Allen wrench
  • Netbotz Appliance Utility CD
  • 1.8 m (6-ft) NEMA 5-15P to C13 power cord
  • 1.8 m (6-ft) C13 to C14 power cord
  • Power-over-Ethernet injector power supply (100–250 VAC in, 48 VDC out)

Download IconAPC NetBotz 455 Installation & Configuration Manual (PDF)

NetBotz 455 (NBWL0456A) Specifications

Physical Characteristics


Height8.27 in. (210mm.)
Width6.69 in. (170mm.)
Depth3.74 in. (95mm.)
Net Weight1.43 lbs (0.65 kg)
Mount PositionWall Mount, Ceiling Mount, Enclosure Mount
Environmental
Storage Temperature 5 - 149 °F (-15 - 65 °C)
Operating Temperature32 - 113 °F (0 - 45 °C)
Storage Humidity10 - 95%
Operating Humidity10 - 95%
Storage Elevation0-50000 feet (0-15000 meters)
Operation Elevation0-10000 feet (0-3000 meters)
Power
Input Voltage, NominalPower-over-Ethernet injector power supply - 100–240 VAC
Power Cords1 x 1.8 m (6-ft) NEMA 5-15P to C13 power cord
1 x 1.8 m (6-ft) C13 to C14 power cord
Connections, Sensors & Cameras
Integrated CameraImages up to 1280x1024 resolution, 24-bit color, and up to 30 frames per second (fps)
External Cameras SupportedNetBotz Camera Pod 160, Pelco IP Camera Families: Sarix, Spectra IV IP, Spectra Mini IP, IP110 Camclosure, IP3701, and CCTV Cameras integrated through the NetBotz CCTV Adapter Pod
Integrated SensorsTemp, Airflow, Humidity, Dew Point (calculated), Camera Motion Sensor
APC Universal Sensors SupportedTemp, Temp / Humidity, Door Contact, Smoke, Spot Leak, Vibration, Dry Contact, 0-5V
Sensors and Pods SupportedRoom Sensor Pod 155(NBPD0155), Rack Sensor Pod 150 (NBPD0150), Wireless Sensor Pod 180 (NBPD0180) Rack Access Pod 170 (NBPD0171 & NBPD0172)
ConnectorsEthernet: (1) 10/100 Base-T Ethernet Port (PoE capable), (4) APC Universal Sensor Ports, (1) USB Configuration Port – Style B, (1) USB Port – Style A, (1) Microphone Jack, (1) Speaker Jack, (1) A-Link Port.
Communications & Management
ProtocolsTCP/IP, HTTP, HTTPS, SMTP, SNMP v1, v2c, and v3, DHCP, DNS, Socks v4 or V5 Proxy Server, A-Link
Network Interface ConnectionsRJ-45 10/100 Base-T
Management InterfaceInternet Explorer v 5.5 or later; Mozilla 1.3 or later; Firefox 2.0 or later; NetBotz Advanced View Software; StruxureWare Data Center Expert
Client System RequirementsMicrosoft Windows 7 Pro and Ultimate; Vista Business and Enterprise; XP SP2-3; Red Hat EL4 and EL5 Use of Advanced View interface requires a one-time download of the Sun Java Runtime Environment
IndicatorsAlert, Power, Camera, Network Link, Temperature Display
ApprovalsCE; FCC 47 CFR Part 15 Class A, ICES-003 Class A, AS/NZS CISPR 22, VCCI Class A, Low Voltage Directive 2006/95/EC, EMC Directive 204/108/EC NBWL0456A Only: UL, c-UL, GS-ul, IRAM, NOM, GOST, PSE;
Warranty2 years repair or replace

Formerly the NBWL0456
