Single-zone Opposed Blade Damper - For DirectAire AL, DirectPerf32, & GrateAire (Field-Mounted)

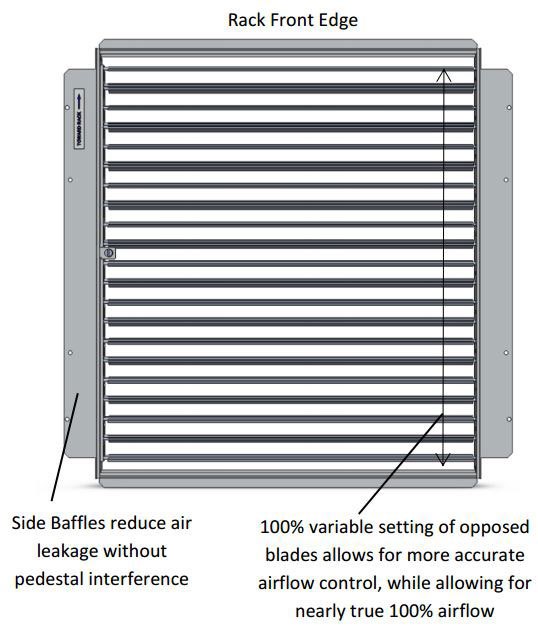

Tate's Single-zone Opposed Blade Damper offers a dramatic airflow improvement over traditional manual slide dampers. It features a nearly infinite range of adjustment and very little airflow resistance. Easy access through the panel's surface allows for quick adjustment of the damper for accurate airflow balancing for IT hardware with fixed airflow requirements. The damper's drop-in design allows for easy installation by decoupling the damper from the panel. This means that standard, undampered directional airflow panels can be ordered as needed, with separate opposed blade dampers purchased as necessary.

  • Provides more airflow at 100% than comparable slide dampers
  • Adjustable from top without removing raised floor panel
  • Quarter turn adjustment for 0-100% range of damper
  • Field-mounted dampers are attached to the bottom of the airflow panel - Field-mounted using self-tapping screws
  • Airflow panel-mounted to minimize air leakage between panel and damper
  • Supports both 24" and 60cm raised floor systems
  • Designed for use with 32% DirectPerf, DirectAire Al Panels, and GrateAire® Panels
  • Made from anodized extruded aluminum
  • Damper Weight: 3.8 lbs. (1.7 kg)
  • Dimensions: 22.5" length x 22.5" width x 1.75" depth (57.15 cm length x 57.15 cm width x 4.45 cm depth)

Tate floor panels are only compatible with Tate Raised Floor Systems. Please check your setup carefully - no returns accepted. For larger quantaties, please contact us

Tate Single-zone Opposed Blade Damper


Price: $63.00
NOW: $57.69
Save: $5.31

Download IconTate Raised Floor Systems (PDF)

Tate Single-zone Opposed Blade Damper

Airflow Performance Information (Paired with DirectAire Al)

Static Pressure
(inH2O)
0% Open (CFM)100% Open (CFM)
.02128857
.041781293
.051981422
.062171546
.082581745
.102981951
.123302181
.143512313
.163822422
.183942650
.204242755

Airflow Performance Information (Paired with 32% DirectPerf Panel)

CFM @ Static Pressure (in. wc)0% Open (CFM)100% Open (CFM)
.02114480
.04160693
.05178770
.06191822
.08219963
.102551063
.122851168
.143071260
.163351331
.183601375
.203731509

Airflow Performance Information (Paired with GrateAire Panel)

CFM @ Static Pressure (in. wc)0% Open (CFM)100% Open (CFM)
.02130810
.041811121
.052041274
.062181386
.082531595
.102861785
.123191913
.143472115
.163672166
.183952340
.204222506

*Cooling capacities were calculated using the following formula:(CFM x Capture Index %) / 126(CFM needed to cool 1kW @ 25ºF ?T)= kW per rack.

INSTALLATION

The DirectAire Al panels utilize the inner 4 holes to mount the Opposed Blade Damper. Please ensure the airflow panel and OBD is oriented correctly in respect to the server rack.

The GrateAire and 32% DirectPerf panels utilize the outer 4 holes to mount the Opposed Blade Damper. Please ensure the airflow panel and OBD is oriented correctly in respect to the server rack.

REQUIRED COMPONENTS

  • Torque Limited Screw gun or screwdriver
  • Screws for 32% Directional Perf (PN#:11525)
  • Screws for DirectAire Al or GrateAire (PN#20701)

AIRFLOW PANEL OPTIONS

  • DirectAire® Al (24" and 60cm versions)
  • 32% DirectPerf (24" and 60cm versions)
  • GrateAire (24" and 60cm versions)
